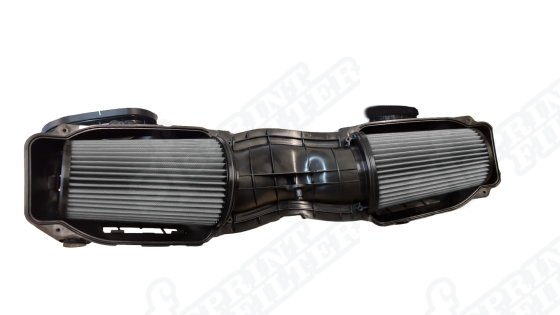

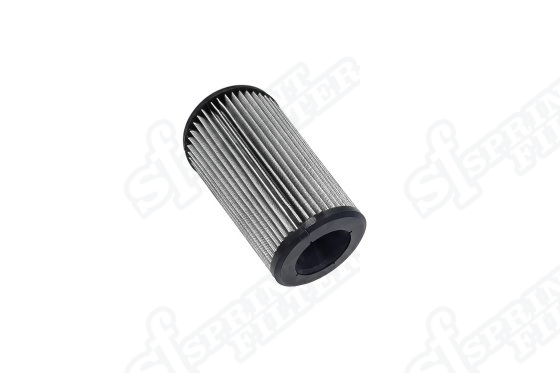

PORSCHE 911 (992) 911 GT3 RS (2 filters required) (for demanding conditions)

PORSCHE

Brand

911 (992)

Model

21 >

Year

525 3996 cc (Eng. Code DRMA)

Engine

992

Chassis

C1245P14

Part No

80

Views

Details
Available Information
Product Specifications

Il media filtrante Sprint Filter P14 è il filtro aria "a secco" più avanzato e performante del Mondo, studiato appositamente per le moto Adventure e Dual Sport. È stato progettato da Sprint Filter per condizioni difficili e regioni polverose e protegge il motore dalle particelle di polvere fine.

Con un potere filtrante di 14 micron, questo speciale filtro dell'aria non necessita di lubrificazione e richiede una manutenzione molto ridotta. La procedura di pulizia prevede semplicemente di soffiarlo con una pistola ad aria compressa. In caso di sporco persistente, il filtro aria può essere facilmente lavato con qualsiasi tipo di detergente e successivamente soffiato con aria compressa per asciugarlo velocemente.

C1245P14 Cross References

MAINTENANCE OF YOUR SPRINT FILTER AIR FILTER

Flange Inside Diameter :

105 mm
Top Outside Diameter :

114 mm
ns: Flange Inside Diameter: 105 mm - Top Outside Diameter: 114 mm - Base Outside Diameter :

150 mm
Height :

246 mm
Weight :

423 gr

TECHNOLOGY

FABRICS OF FILTERS

The common performances air filters are composed of cotton yarn very large, the Sprint Filter polyester air filters instead consist of much smaller yarns and calibrated. Thanks to this type of construction the Sprint Filter polyester fabric allows a better filtration combined with a good air permeability, as shown by tests performed. It is necessary say that as regards the cotton fabric results obtained were not constant, this is due to the weak structure and mobile of cotton gauze, the following data are, however, best obtained. With respect to the polyester fabric data have remained constant and precise.

Premium brand of 4 layers cotton air filter

Original Equipment paper air filter

Sprint Filter P037 air filter

AIR PERMEABILITY

The uniform and compact polyester filtering element consists of a thin filament of fabric, forming a mesh of several dozen microns, capable of trapping all significant particles and ensuring a very high air flow rate. Our polyester air filter guarantees a very high air flow that neither cotton filters nor OEM paper filters can achieve. Remember this simple equation: More Air = More Power!

EFFICIENCY FILTRATION

The Sprint Filter polyester air filters retain 93.13% of 100 μ particles (Sprint Filter P08 air filter) - 91.8% of 37 μ particles (Sprint Filter P037 air filter) - 95.22% of 100 μ particles (Sprint Filter P08F1-85 air filter) versus the 76.42% of a common 4-layer oil-soaked cotton air filter

Because of its uniform structure, the Sprint Filter air filter ensures less air flow disturbance, also thanks to the exclusive and patented filtering material in single-layer polyester

THE REALIZATION

Sprint Filter creates over 65 years innovative products made with the most sophisticated and technologically advanced materials: from aluminum, steel, and then move on to materials in polyurethane foams to get to plastics all kinds of fine carbon and kevlar. The entire process of manufacturing our products is done internally with sophisticated equipment design and production: designed with advanced three-dimensional cad-cam our filters and extraction systems are built using molds developed with numerical control machines and realizzatiinfine with modern machinery for molding plastics and dispensing of polyurethane.
