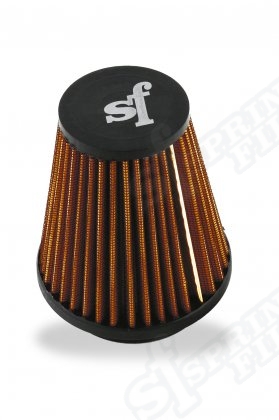

Reference CON150.1P14
CON150.1P14
Category: Conicals
Product Specifications
- Internal Diameter: 150 mm
- Bottom Base Diameter: 190 mm
- Top Base Diameter: 120 mm
- Length: 75 mm
Details
P14 - Fine Filtration. Demanding Conditions.
Sprint Filter P14 is an advanced dry air filter specifically developed for demanding environments, including dusty roads, Adventure and Dual Sport applications.
Designed to provide high filtration efficiency and effective engine protection, P14 is particularly suitable for vehicles frequently exposed to fine dust and challenging operating conditions.
Its advanced filtering media combines fine-particle retention with the practical advantages of a dry, reusable air filter.
Filtration & Performance
P14 features a specialized filtering media with a filtration rating of 14 microns, designed to capture fine dust particles and help protect the engine in demanding environments.
Its filtration characteristics make it particularly suitable for applications where dust protection is a priority, including Adventure riding, unpaved roads and prolonged exposure to airborne particles.
Easy Maintenance
P14 requires minimal maintenance and does not need oiling.
For routine cleaning, simply remove the filter from the airbox and use compressed air to remove accumulated dust.
In cases of persistent contamination, the filter can also be washed with detergent and subsequently dried using compressed air.
No filter oil or special oil treatments are required.
Durability & Build Quality
Engineered for demanding operating conditions, P14 is designed to provide consistent filtration performance and reliable protection over repeated use and cleaning cycles.
Its reusable dry-filter construction combines fine filtration, practical maintenance and long-term durability, making it a suitable solution for vehicles operating in dusty environments.
Fabrics of filters
The common performances air filters are composed of cotton yarn very large, the Sprint Filter polyester air filters instead consist of much smaller yarns and calibrated. Thanks to this type of construction the Sprint Filter polyester fabric allows a better filtration combined with a good air permeability, as shown by tests performed. It is necessary say that as regards the cotton fabric results obtained were not constant, this is due to the weak structure and mobile of cotton gauze, the following data are, however, best obtained. With respect to the polyester fabric data have remained constant and precise.
Premium cotton 4 layers air filter - microscope view 10x
Premium cotton 4 layers air filter - microscope view 10x
Sprint Filter P037 air filter microscope view 10x
Sprint Filter P08 air filter microscope view 10x
Air permeability
The uniform and compact polyester filtering element consists of a thin filament of fabric, forming a mesh of several dozen microns, capable of trapping all significant particles and ensuring a very high air flow rate. Our polyester air filter guarantees a very high air flow that neither cotton filters nor OEM paper filters can achieve. Remember this simple equation: More Air = More Power!
Efficiency filtration
The Sprint Filter polyester air filters retain 93.13% of 100 μ particles (Sprint Filter P08 air filter) - 91.8% of 37 μ particles (Sprint Filter P037 air filter) - 95.22% of 100 μ particles (Sprint Filter P08F1-85 air filter) versus the 76.42% of a common 4-layer oil-soaked cotton air filter
Because of its uniform structure, the Sprint Filter air filter ensures less air flow disturbance, also thanks to the exclusive and patented filtering material in single-layer polyester.
The realization
Sprint Filter creates over 65 years innovative products made with the most sophisticated and technologically advanced materials: from aluminum, steel, and then move on to materials in polyurethane foams to get to plastics all kinds of fine carbon and kevlar. The entire process of manufacturing our products is done internally with sophisticated equipment design and production: designed with advanced three-dimensional cad-cam our filters and extraction systems are built using molds developed with numerical control machines and realization fine with modern machinery for molding plastics and dispensing of polyurethane.
Technical Specifications
| Technology | Multilayered Oiled Cotton / Foam | P08 | T12 | P037 | P08F1-85 | P14 |
|---|---|---|---|---|---|---|
| Mesh Opening | Random | 80 μm | 7 μm | 37 μm | 85 μm | 14 μm |
| Airflow | Random < 2500 l/m²/s | 5,000 l/m²/s | 560 l/m²/s | 4,500 l/m²/s | 15,000 l/m²/s | 1,800 l/m²/s |
| Laminar Flow | No | Yes | No | Yes | Yes | Yes |
| Max Performance Longevity | Short | Consistent | Consistent | Consistent | Consistent | Medium |
| Peak Performance Repetition | Random | Consistent / Always the same | Consistent / Always the same | Consistent / Always the same | Consistent / Always the same | Random |
| Maintenance Procedures |
1) Washing with detergent; 2) Allow to dry; 3) Oiling |
Blow with compressed air | Blow with compressed air | Blow with compressed air | Blow with compressed air | Blow with compressed air |
| Extra Maintenance Kit | Yes (required) | No | No | No | No | No |
| Water Repellent | No | No | Yes | Yes | Yes | Yes |
| Type of Use | Road / Racing | Road / Racing | Desert / extreme conditions | Road / Racing + demanding conditions | Road / Racing | Road / Racing |
